There is nothing that matches the durability and strength of a military vehicle from Cariboo6X6.
These trucks are ideal for:
: Mining and Exploration
: Oil and Gas
: Forestry
: Agriculture
: Ski Hill maintenance
: Access to the back country
The vehicles will operate in most terrain, and carry over 20 ton. Super Singles tires are stock on some models and available (extra) on others. Please inquire.
Both new and used parts are readily available and are relatively inexpensive. Manuals for each model (operation, maintenance, and parts) can be ordered.
We have successfully exported trucks and parts to Australia, Papua New Guinea, Panama, and Cameroon.
Note: We have vehicle inventory across western Canada, however if we are out of stock on the model you require, we can have cross-border access to additional inventory and can have it imported into Canada, and delivered to your door within 10 days of full payment.

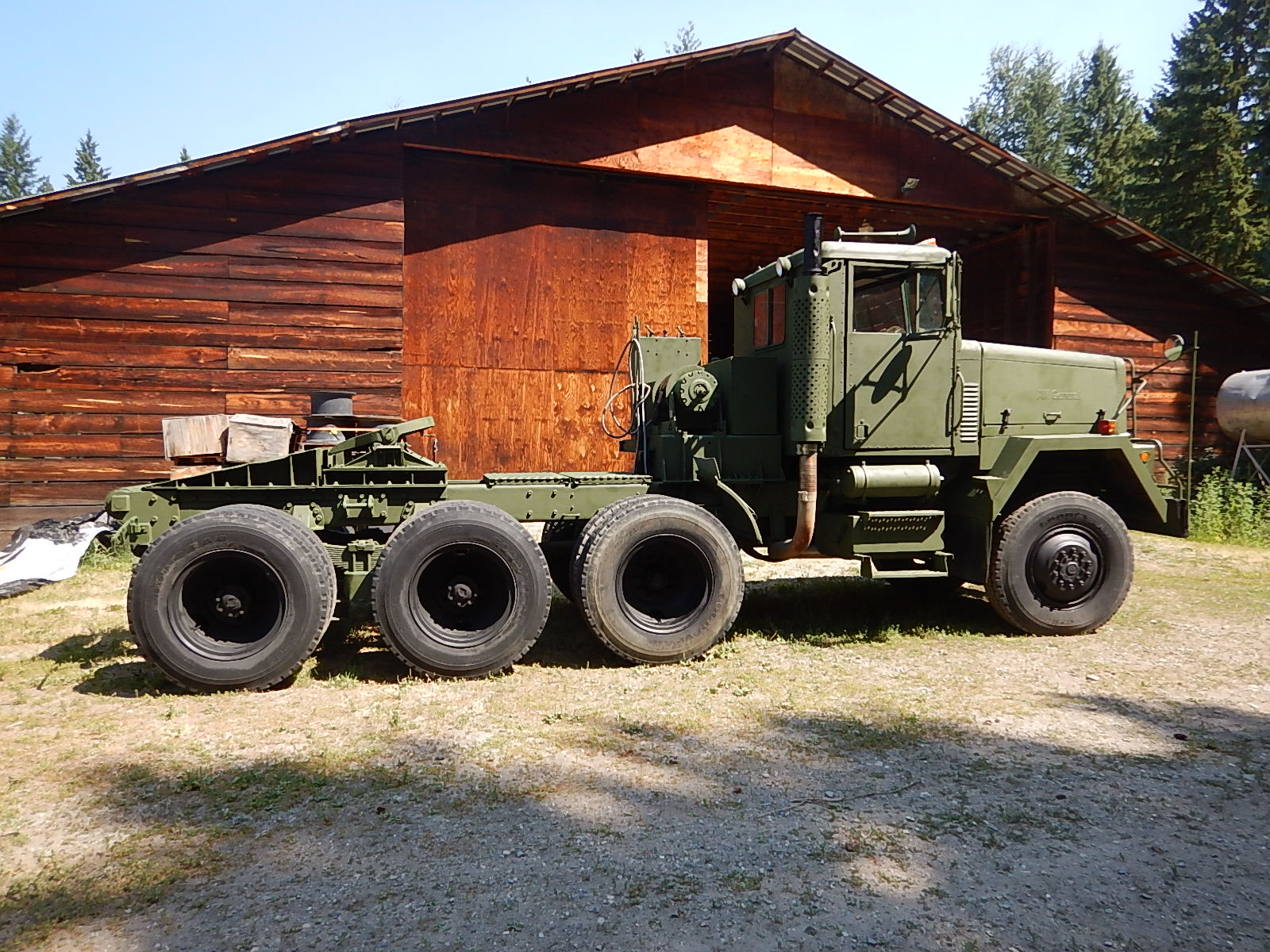

M-812 Bridge Truck

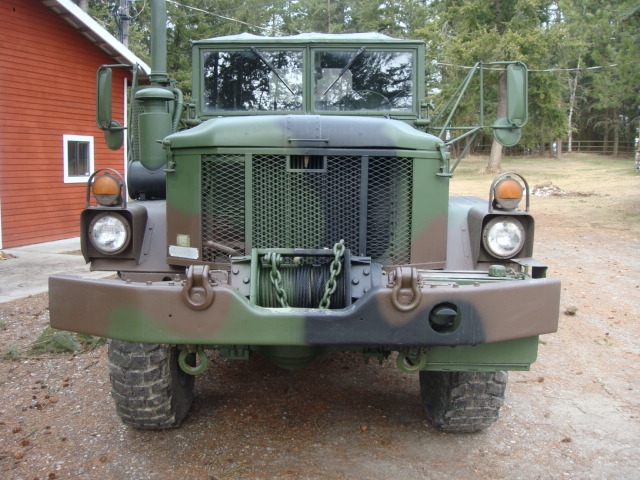

M-812 Bridge Truck with PTO driven front winch, 5-speed Spicer transmission, air over hydraulic brakes and hydraulic rear winch.
M-812 Bridge Truck General Specs
Vehicle M812 A1
Manufactured by AM General
Wheel base 215 inches
Tire Size 1400X20
Steering Ross Power, HP 70 series
Weight (curb) Cab and Chassis 20,000 lb
Engine Cummins NHC 250, Naturally Aspirated
Horsepower 250 to 300
Transmission Spicer 5 speed, Synchromesh, Model 6353
Transfer Case: Rockwell 2 speed, Model T-138
Axles Rockwell Double Reduction, Front 18,000 lbs, Rear 44,000 lbs
Differentials Ratio 6:44/1
Electrical System 24 Volt, negative ground, 60 Amps
Brakes Wagner/Bendix Air/Hydraulic, Parking brake manual
Fuel Capacity 80 Gallons.
Hydraulic Gin Pole on back deck.
 |
| Double ram hydraulic Gin Pole |
 |
| M812 C/W Cargo Pallet & Michelin 1600R/20 XZL Super Singles |
M-812 Bridge Truck General Specs
Vehicle M812 A1
Manufactured by AM General
Wheel base 215 inches
Tire Size 1400X20
Steering Ross Power, HP 70 series
Weight (curb) Cab and Chassis 20,000 lb
Engine Cummins NHC 250, Naturally Aspirated
Horsepower 250 to 300
Transmission Spicer 5 speed, Synchromesh, Model 6353
Transfer Case: Rockwell 2 speed, Model T-138
Axles Rockwell Double Reduction, Front 18,000 lbs, Rear 44,000 lbs
Differentials Ratio 6:44/1
Electrical System 24 Volt, negative ground, 60 Amps
Brakes Wagner/Bendix Air/Hydraulic, Parking brake manual
Fuel Capacity 80 Gallons.
Hydraulic Gin Pole on back deck.
M-916
 |

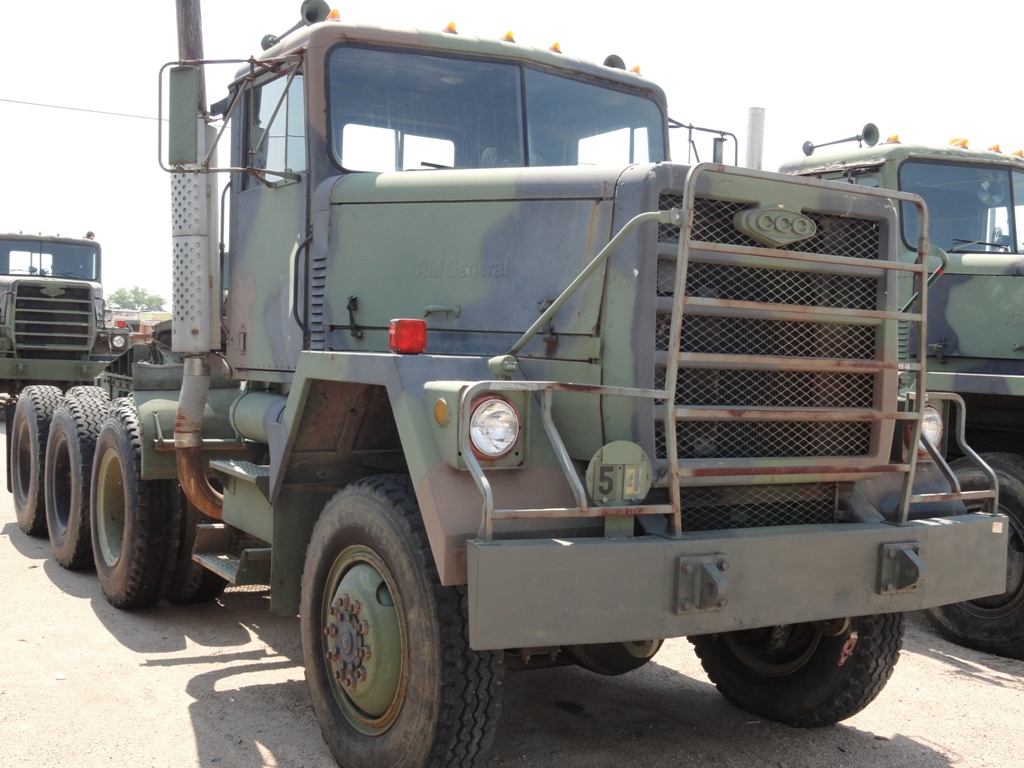

| M-920 C/W 20 Yard Dump |

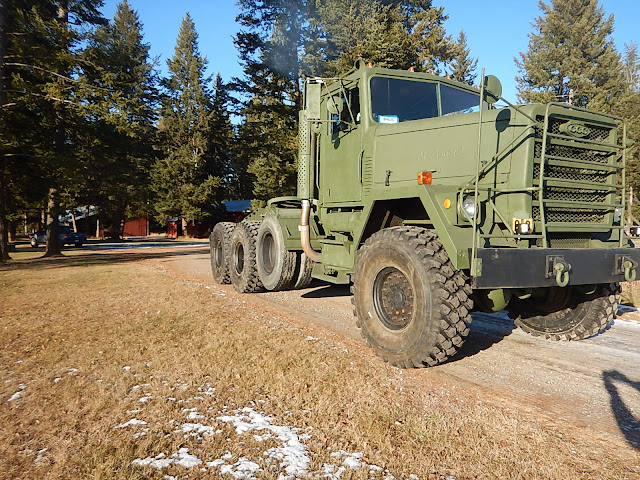

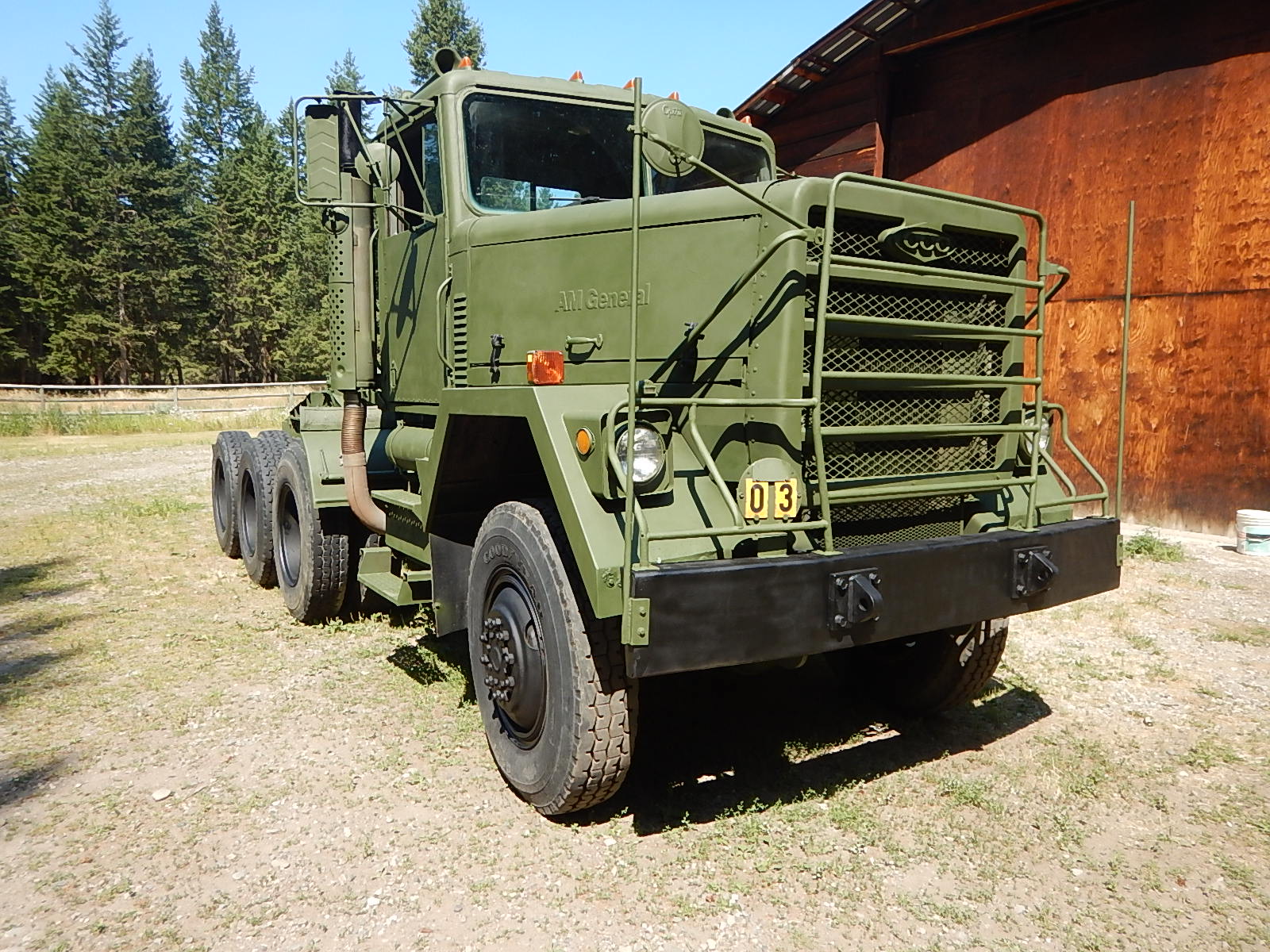

M-916 Equipment Hauler
M-916 General Spec's:
: Cummins NTC 400 HP Big Cam Diesel C/W 3 Stage Jake Brake.
: Cat 7155 16 sp Transmission.
: Double frame
: Oshgosh Transfer Case.
: Inter-Axle Differential Lock for front and rear.
: Rockwell 20K front Axle.
: Granning 20K Pusher Axle.
: Rockwell 55,0000 lb. on rears, Hendrickson 58,000 lb. suspension.
: 1100R/24 Tires.
: 45,000 lb. Rear winch C/W 7/8" cable, & extra Hydraulic valve 22gpm.
: 3.5" Kingpin & Pintle Hitch.
: This truck is designed to haul 100,000 loads.
M-35A3
- CAT 3116 Turbo Diesel Engine
- Allison 1545P 4 Speed Automatic
- Power Steering (Air Assist)
- Rockwell C-240 Front and Rear Axles
- Air locking front axle
- Rockwell T-136 Transfer Case (High/Low)
- Arctic High output cab heater
- Quick Start Ether Cylinder and Cold Weather Start Switch
- 15,000 lb Hydraulic winch
- Adjustable Air Ride Driver's Seat
 |
| M35A3 C/W Hydraulic Winch |

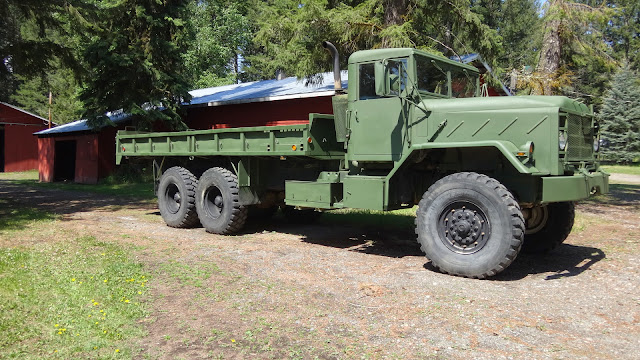

M-813
The M-813 5-speed cargo truck.
M-813 Cargo General Specs
Vehicle M813 Cargo
Manufactured by AM General
Wheel base 179 inches
Tire Size 1100X20, or 1400X20
Steering Ross Power, HP 70 series
Weight (curb) Cab and Chassis 22,500 lb
Engine Cummins NHC 250, Naturally Aspirated
Horsepower 250 to 300
Transmission Spicer 5 speed, Synchromesh, Model 6353
Transfer Case: Rockwell 2 speed, Model T-138
Axles Rockwell Double Reduction, Front 18,000 lbs, Rear 44,000 lbs
Differentials Ratio 6:44/1
Electrical System 24 Volt, negative ground, 60 Amps
Brakes Air/Hydraulic
Fuel Capacity 80 Gallons
M-813 Cargo General Specs
Vehicle M813 Cargo
Manufactured by AM General
Wheel base 179 inches
Tire Size 1100X20, or 1400X20
Steering Ross Power, HP 70 series
Weight (curb) Cab and Chassis 22,500 lb
Engine Cummins NHC 250, Naturally Aspirated
Horsepower 250 to 300
Transmission Spicer 5 speed, Synchromesh, Model 6353
Transfer Case: Rockwell 2 speed, Model T-138
Axles Rockwell Double Reduction, Front 18,000 lbs, Rear 44,000 lbs
Differentials Ratio 6:44/1
Electrical System 24 Volt, negative ground, 60 Amps
Brakes Air/Hydraulic
Fuel Capacity 80 Gallons
M-818

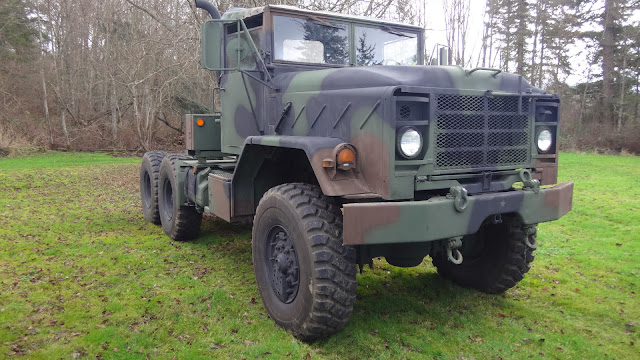

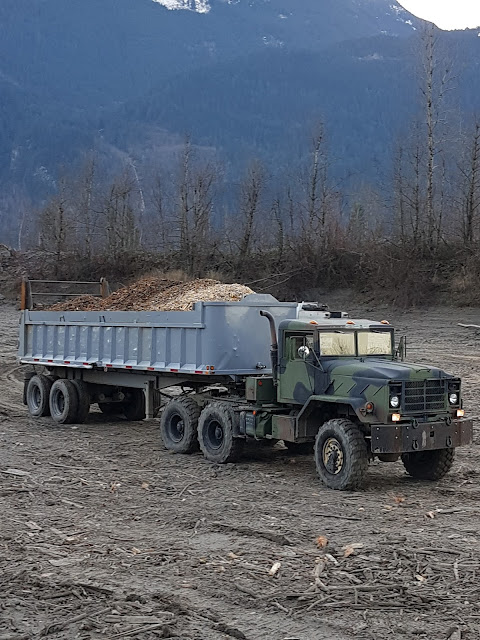

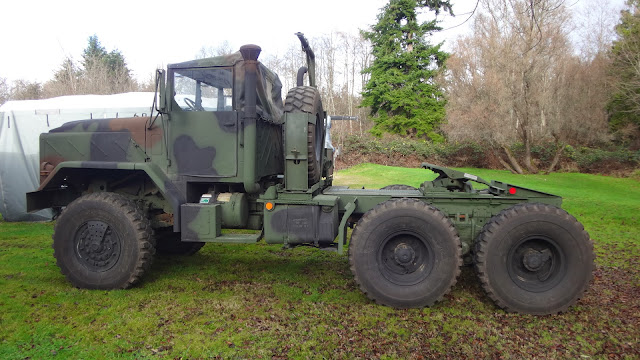

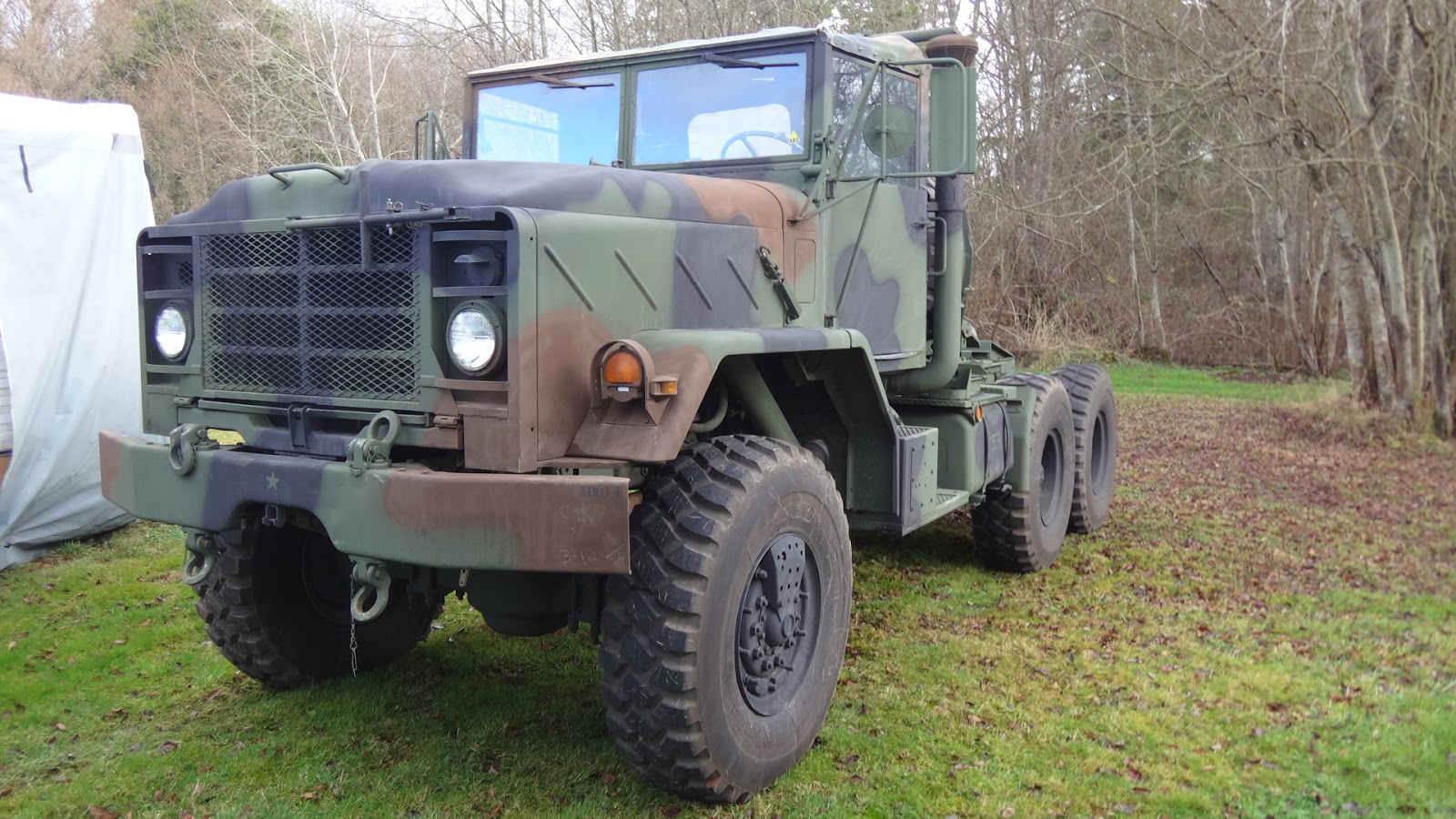

The M-818 tractor.
M-818 Tractor General Specs
Vehicle M818 Tractor
Manufactured by AM General
Wheel base 167 inches
Tire Size 1100X20, or 1400X20
Steering Ross Power, HP 70 series
Weight (curb) Cab and Chassis 18,500 lb
Engine Cummins NHC 250, Naturally Aspirated
Horsepower 250 to 300
Transmission Spicer 5 speed, Synchromesh, Model 6353
Transfer Case: Rockwell 2 speed, Model T-138
Axles Rockwell Double Reduction, Front 18,000 lbs, Rear 44,000 lbs
Differentials Ratio 6:44/1
Electrical System 24 Volt, negative ground, 60 Amps
Brakes Wagner/Bendix Air/Hydraulic, Parking brake manual
Fuel Capacity 80 Gallons
M-818 Tractor General Specs
Vehicle M818 Tractor
Manufactured by AM General
Wheel base 167 inches
Tire Size 1100X20, or 1400X20
Steering Ross Power, HP 70 series
Weight (curb) Cab and Chassis 18,500 lb
Engine Cummins NHC 250, Naturally Aspirated
Horsepower 250 to 300
Transmission Spicer 5 speed, Synchromesh, Model 6353
Transfer Case: Rockwell 2 speed, Model T-138
Axles Rockwell Double Reduction, Front 18,000 lbs, Rear 44,000 lbs
Differentials Ratio 6:44/1
Electrical System 24 Volt, negative ground, 60 Amps
Brakes Wagner/Bendix Air/Hydraulic, Parking brake manual
Fuel Capacity 80 Gallons

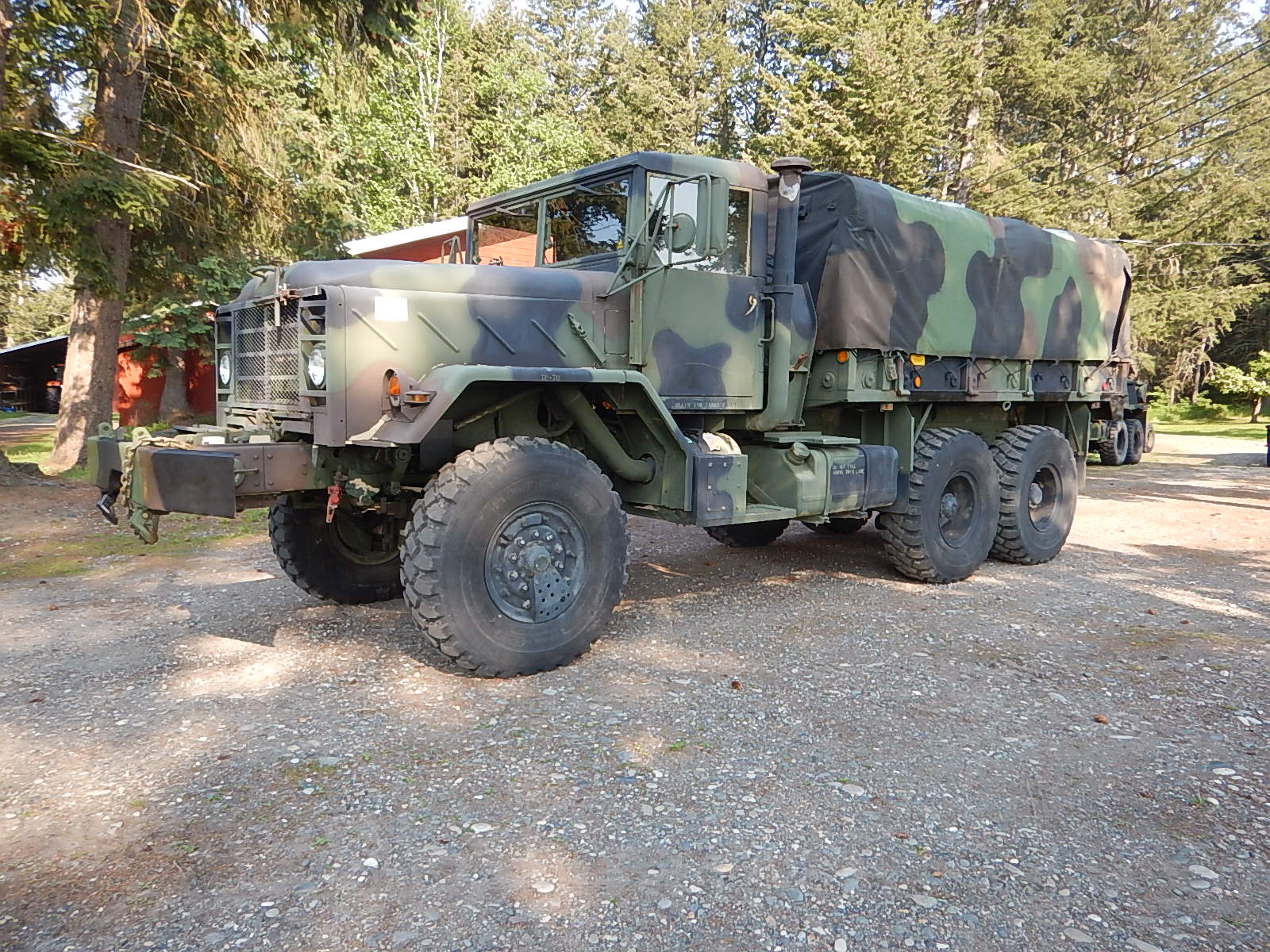

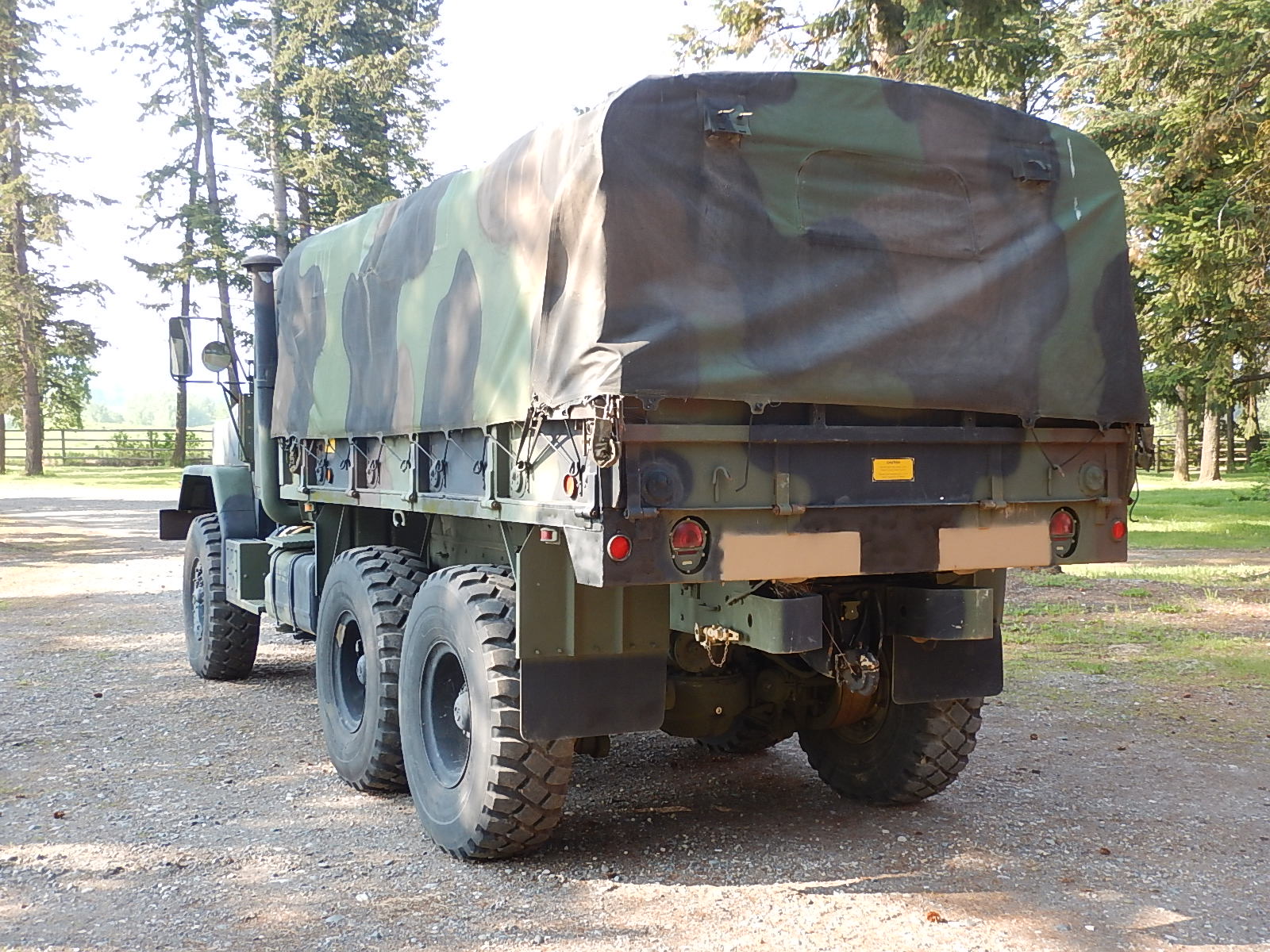

M-923

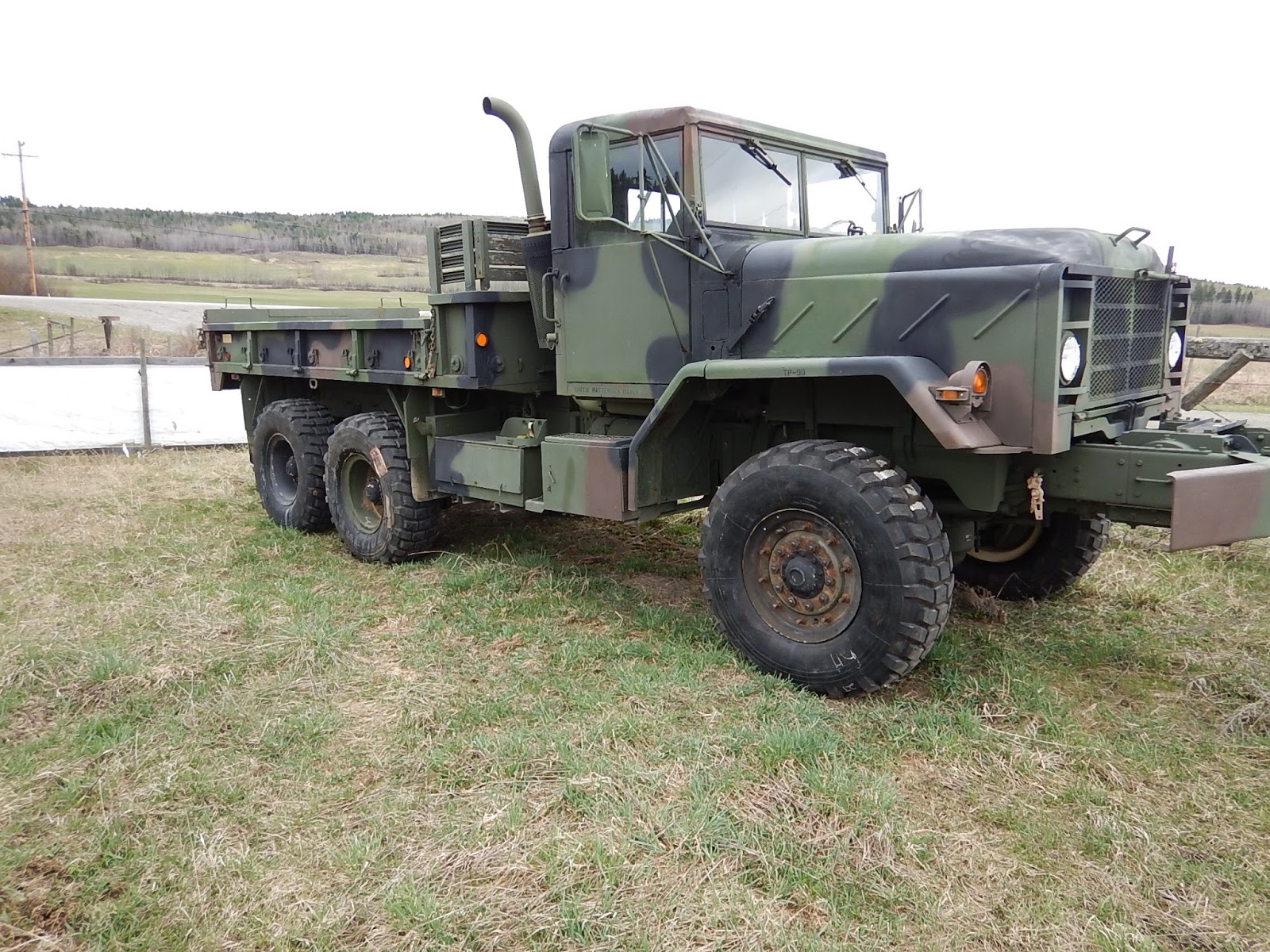

The M-923 with new body style, improved power steering, air brakes, and Allison 5-speed transmission.
M-923 General Specs.
Manufactured by AM General
Tire Size: 395R/20
Steering Ross HFB 64 power-assisted C/W belt driven Eaton pump
Weight (curb) Cab and Chassis 22,000 lb
Engine Cummins NHC 250, Naturally Aspirated
Horsepower 250 to 300, Torque 658 ft/lbs @1500 RPM
Transmission: Allison MT654 5 Speed Automatic C/W Air Shift on dash.
Transfer Case: Rockwell 2 speed, Model T-138
Axles Rockwell Double Reduction, Front 18,000 lbs, Rear 44,000 lbs
Differentials Ratio 6:44/1
Electrical System 24 Volt, negative ground, 60 Amps
Brakes Rockwell Stop Master Air Actuated
Fuel Capacity 81 Gallons
14 foot dropside cargo bed.
Wheelbase: 179 inches
M-923 General Specs.
Manufactured by AM General
Tire Size: 395R/20
Steering Ross HFB 64 power-assisted C/W belt driven Eaton pump
Weight (curb) Cab and Chassis 22,000 lb
Engine Cummins NHC 250, Naturally Aspirated
Horsepower 250 to 300, Torque 658 ft/lbs @1500 RPM
Transmission: Allison MT654 5 Speed Automatic C/W Air Shift on dash.
Transfer Case: Rockwell 2 speed, Model T-138
Axles Rockwell Double Reduction, Front 18,000 lbs, Rear 44,000 lbs
Differentials Ratio 6:44/1
Electrical System 24 Volt, negative ground, 60 Amps
Brakes Rockwell Stop Master Air Actuated
Fuel Capacity 81 Gallons
14 foot dropside cargo bed.
Wheelbase: 179 inches
M-35A2
The M-35A2 Kaiser Jeep with 2-1/2 Ton hauling power.
M-35A2 General Specs
Vehicle M35A2 2-1/2 Ton
Manufactured by Kaiser Jeep
Wheel base 154 inches
Tire Size 900X20
Steering Ross Manual TA-67171
Weight (curb) Cab and Chassis 11,000 lb
Engine Continental/White Inline 6
Horsepower 140 HP diesel LD-465-1, or 160 HP, LDT-465-1C
Transmission Spicer 5 speed, Synchromesh, Model 3052 5th direct, Overdrive Model 3053
Transfer Case: Rockwell 2 speed, Model T-136-21
Axles Rockwell Double Reduction, Front 12,000 lbs, Rear 28,000 lbs
Differentials Ratio 6:72/1
Electrical System 24 Volt, negative ground, 150 Amps
Brakes Wagner/Bendix Air/Hydraulic, Parking brake manual
Fuel Capacity 60 Gallons
M-35A2 General Specs
Vehicle M35A2 2-1/2 Ton
Manufactured by Kaiser Jeep
Wheel base 154 inches
Tire Size 900X20
Steering Ross Manual TA-67171
Weight (curb) Cab and Chassis 11,000 lb
Engine Continental/White Inline 6
Horsepower 140 HP diesel LD-465-1, or 160 HP, LDT-465-1C
Transmission Spicer 5 speed, Synchromesh, Model 3052 5th direct, Overdrive Model 3053
Transfer Case: Rockwell 2 speed, Model T-136-21
Axles Rockwell Double Reduction, Front 12,000 lbs, Rear 28,000 lbs
Differentials Ratio 6:72/1
Electrical System 24 Volt, negative ground, 150 Amps
Brakes Wagner/Bendix Air/Hydraulic, Parking brake manual
Fuel Capacity 60 Gallons
M-817 Dump
M-817 General spec's:
Cummins 855 NHC 250 HP
44K Rear tandem with double reduction Rockwell Axles.
Spicer 5speed Manual Transmission.
Rockwell 2 speed transfercase
Tires: 11:00/20 ND, we can upgrade to Super Singles.
Brakes: Air or Hydraulic.
Empty weight: 23,761 lbs.
Electrical: 24 Volt
M-927/928 LWB
M-927/928 LWB General Specs
Same spec's as M923, Only longer frame and Cargo Bed, 20 ft.
M-928 has winch
Range: 350 Miles
Fuel: 81 Gal US
Wheelbase: 215 inches
M-816 Recovery Wrecker
M-816 Wrecker General Specs
Cummins 855 250 HP
Spicer 5 speed manual Transmission.
Rockwell 2 speed transfer case.
Tires: 11:00 X20 Duels on back, Super Singles available.
Weight: 36,000lbs.
Front winch: 20,000 lbs.
Rear winch: 45,000 lbs.
boom: 10,000 lbs.
Brakes: Air over hydraulic
Client's Trucks
 |
| Bridge Truck converted to 5th Wheel |
 |

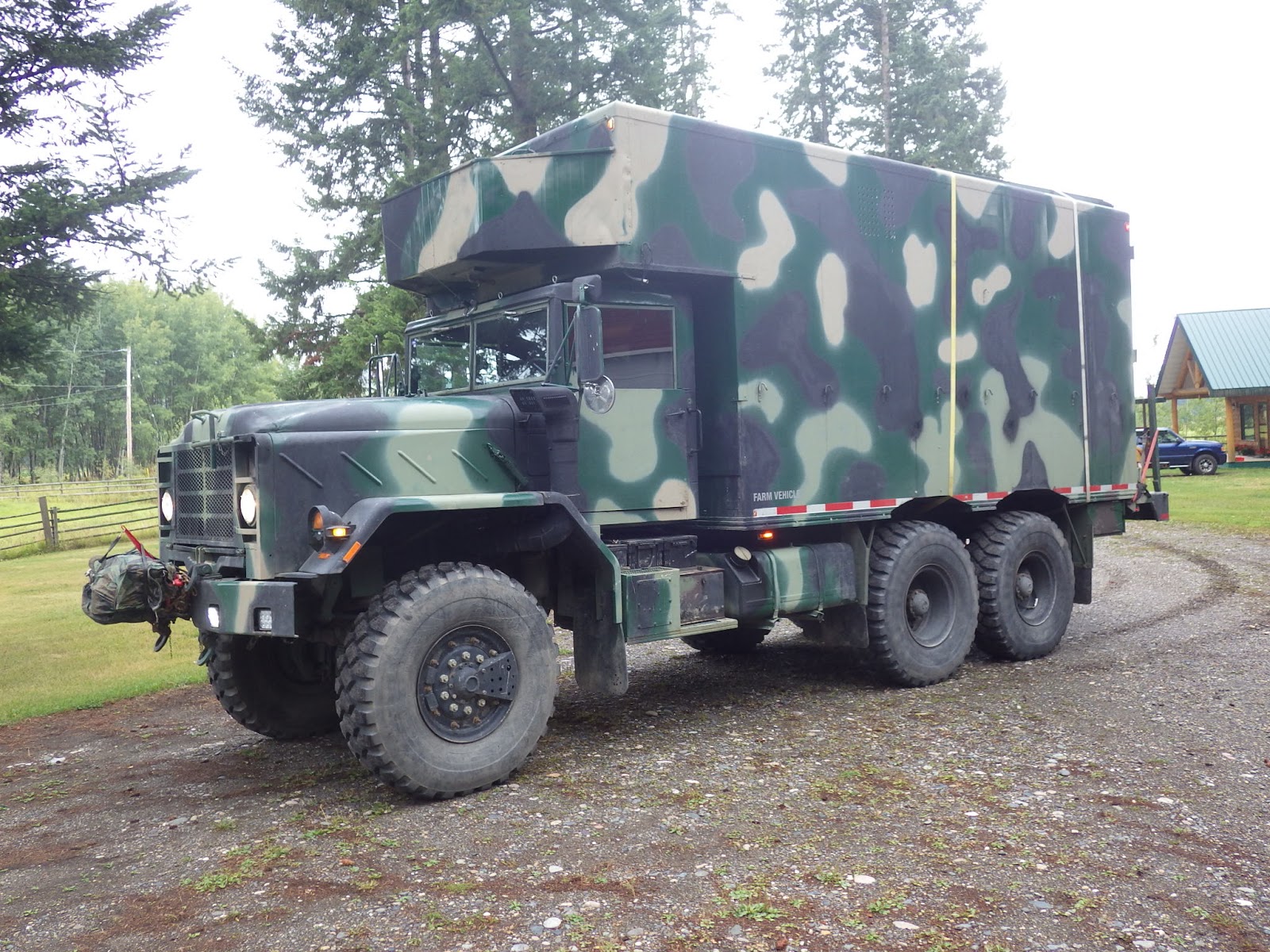

| 6X6 Toy Hauler |
 |
| 6X6 Cattle Feeder |
 |

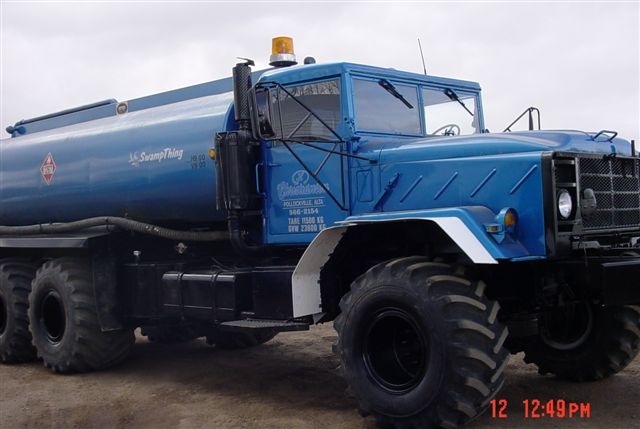

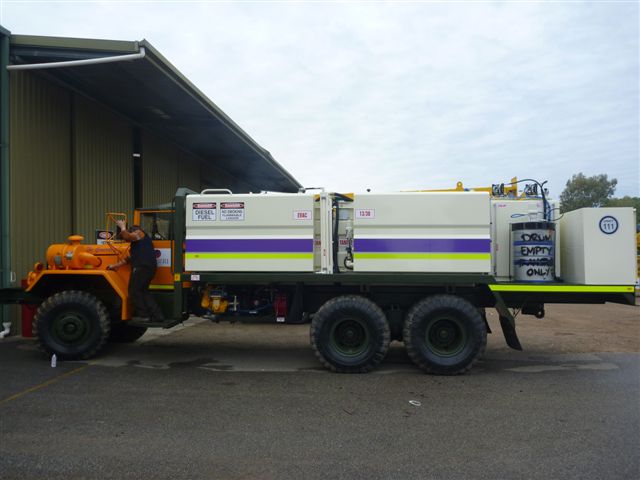

| Bridge Truck Conversion to Fuel Truck Canadian Oil Patch |
 |

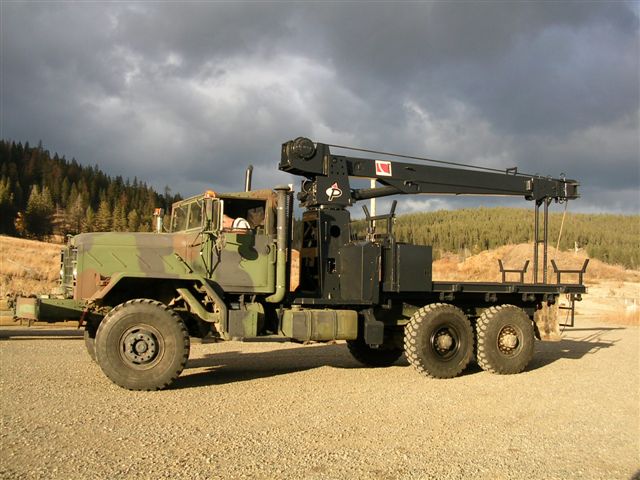

| Powerline Truck C/W Hydraulic Crane |
 |
| M812 Service Truck Australian Mining Industry |
